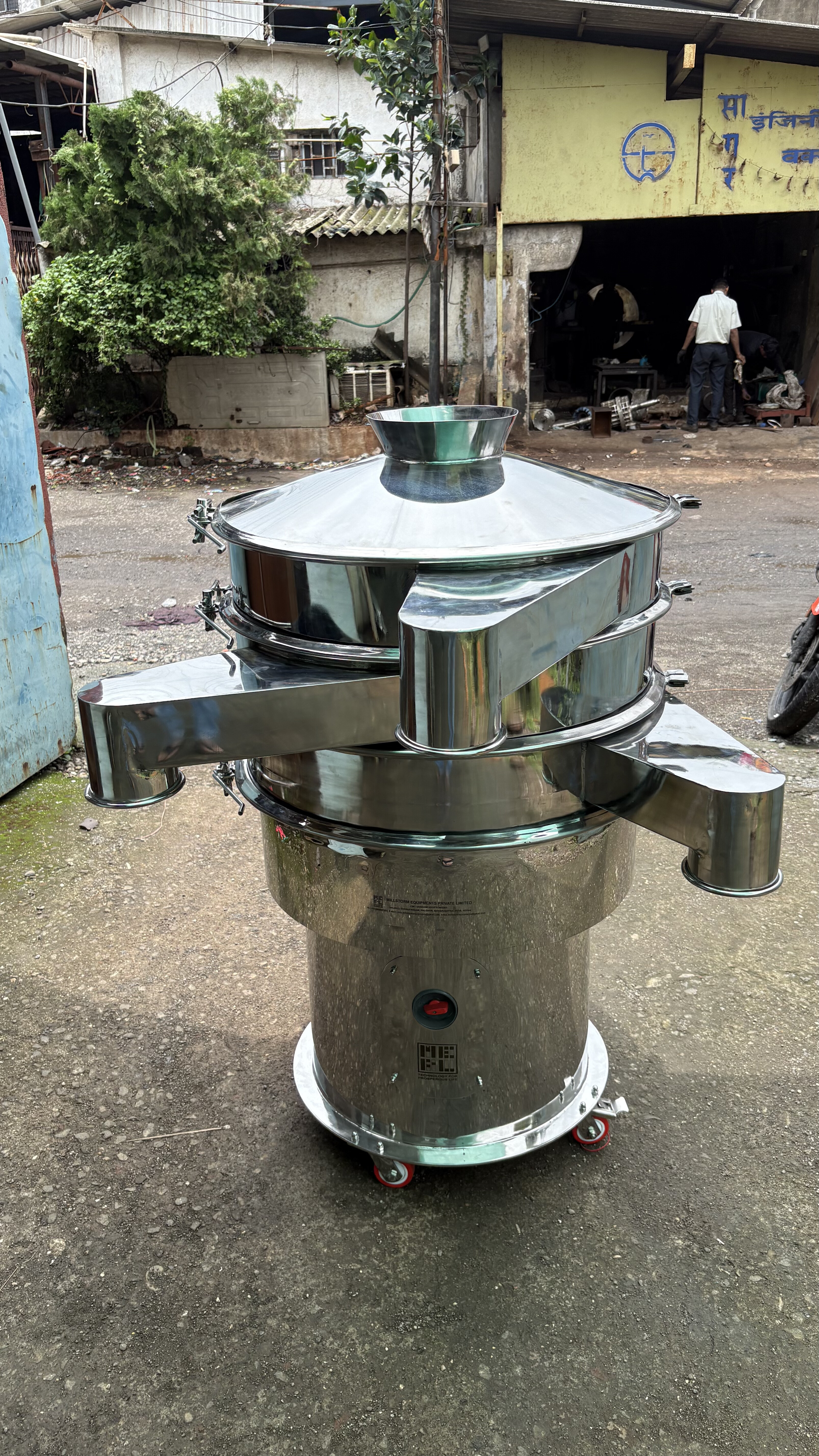

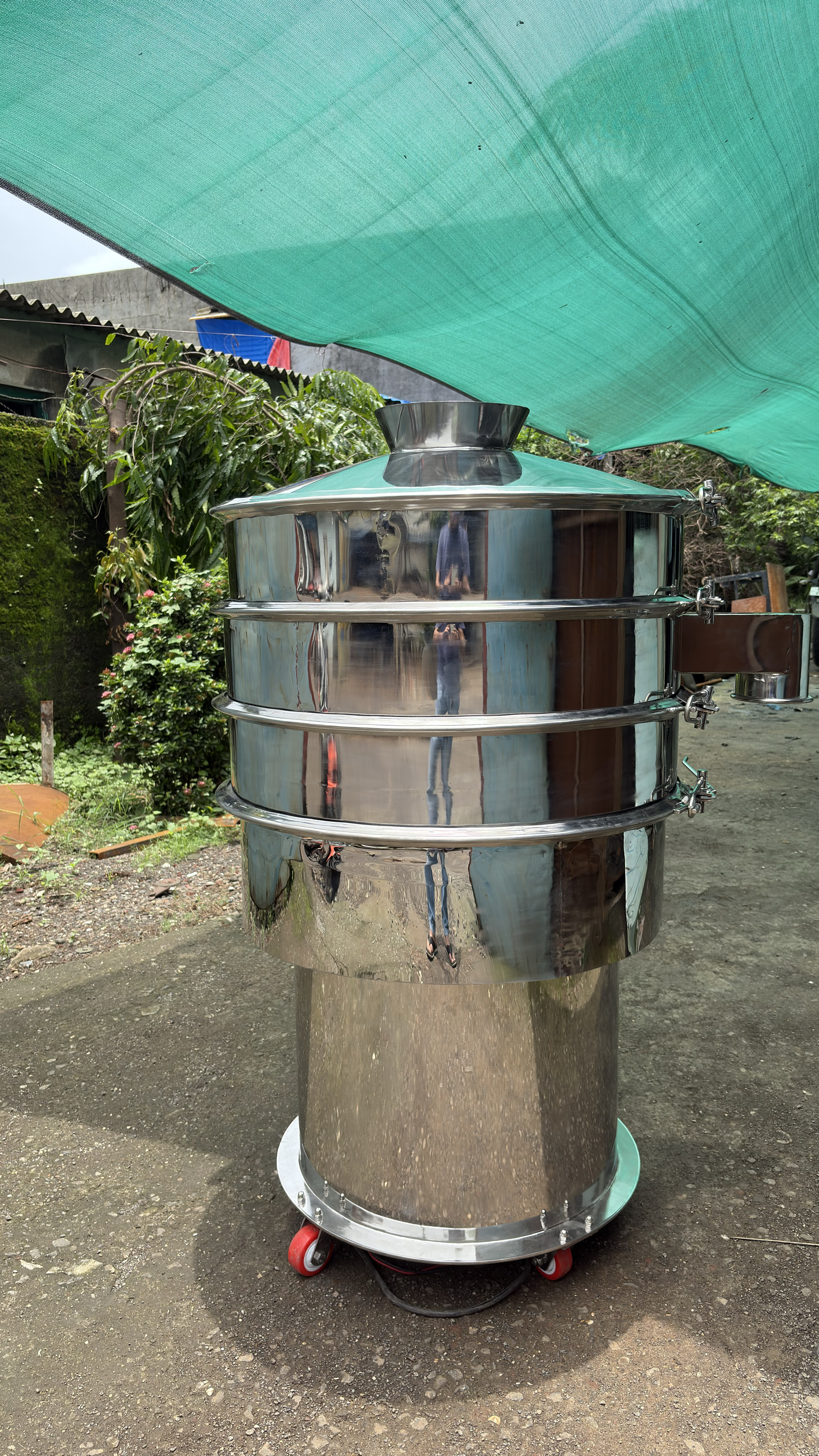

The Millstorm Vibroshifter is a high-performance circular vibrating screening machine designed for accurate separation, grading, de-dusting, and filtration of powders, granules, and liquids. Manufactured from premium stainless steel, it delivers high throughput, superior screening efficiency, and reliable performance with minimal maintenance. Ideal for food, pharmaceutical, chemical, cosmetic, nutraceutical, and mineral processing industries, it ensures hygienic operation.
Food Industry: Flour, Sugar, Spices, Milk Powder, Cocoa, Coffee, Protein Powder, Starch, Salt, Pulses & Grains.
Pharmaceutical Industry: API Powders, Excipients, Tablet Granules, Capsules, Dry Syrups & Fine Chemicals.
Chemical Industry: Pigments, Resins, Detergent Powder, Silica, Calcium Carbonate, Zinc Oxide, Fertilizers & Polymer Powders.
Cosmetic Industry: Talcum Powder, Face Powder, Cosmetic Ingredients & Herbal Powders.
Nutraceutical & Dairy Industry: Protein Powders, Nutraceutical Ingredients & Milk Powder.
Agriculture Industry: Fertilizers, Seeds, Grains & Agricultural Powders.
Minerals & Ceramics: Minerals, Ceramic Powders & Fine Particulate Materials.
Plastic & Rubber Industry: Plastic Granules, Polymer Powders & Rubber Chemicals.
Recycling Industry: Recycled Materials, Powders & Granules.
The Millstorm Vibroshifter uses a specially designed vertical vibratory motor to generate three-dimensional, multidirectional vibration. Material enters through the central inlet and spreads uniformly across the screening mesh. Fine particles pass through the mesh, while oversized particles move toward the discharge outlet. Single, double, triple and multi-deck configurations can separate multiple particle sizes simultaneously, providing accurate grading, high productivity and consistent product quality.
| Parameter | Specification |
|---|---|
| Construction | SS304 / SS316 / Mild Steel |
| Machine Type | Circular Vibroshifter |
| Deck Options | Single, Double, Triple & Multi Deck |
| Mesh Range | 4 Mesh to 500 Mesh |
| Motor Type | Vertical Vibratory Motor |
| Capacity | Depends on Product Characteristics |
| Voltage | 415V, 50Hz, 3 Phase (Customizable) |
| Surface Finish | Matt / Mirror |
| Mounting | Spring Supported |
| Operation | Continuous |
| Model | Screen Diameter | Deck Options | Recommended Production Scale | Approx. Capacity | Motor Power | Construction |
|---|---|---|---|---|---|---|
| MEVB-12 | 300 mm (12") | Single / Double | Laboratory & R&D | 20–80 kg/hr | 0.25 HP | SS316 / SS304 |
| MEVB-20 | 500 mm (20") | Single / Double | Small Production | 100–300 kg/hr | 0.25 HP | SS316 / SS304 |
| MEVB-24 | 600 mm (24") | Single / Double / Triple | Small to Medium Production | 200–600 kg/hr | 0.5 HP | SS316 / SS304 |
| MEVB-30 | 760 mm (30") | Single / Double / Triple | Medium Production | 400–1,200 kg/hr | 0.5 HP | SS316 / SS304 |
| MEVB-36 | 900 mm (36") | Single / Double / Triple | Medium to Large Production | 800–2,500 kg/hr | 1 HP | SS316 / SS304 |
| MEVB-40 | 1000 mm (40") | Single / Double / Triple | Large Production | 1,000–3,500 kg/hr | 1 HP | SS316 / SS304 |
| MEVB-48 | 1200 mm (48") | Single / Double / Triple | High Capacity Production | 1,500–5,000 kg/hr | 1.5 HP | SS316 / SS304 |
| MEVB-60 | 1500 mm (60") | Single / Double / Triple | Very High Capacity Production | 3,000–8,000 kg/hr | 2 HP | SS316 / SS304 |
Note: Actual capacity varies depending on material properties, mesh size, bulk density, moisture content, feed rate, particle size distribution and desired separation efficiency.
Millstorm Vibroshifters are available in multiple screen diameters:
Custom sizes can also be manufactured to meet specific process requirements.
Millstorm Equipments Private Limited focuses on precision engineering, robust construction, reliable performance and customer-specific screening solutions. Vibroshifters are manufactured using quality materials, precision fabrication and stringent quality control to provide high screening accuracy, long service life and easy maintenance.
Our machines are suitable for fine powder classification, de-dusting, safety screening, powder separation, liquid filtration and multi-stage grading across food, pharmaceutical, chemical and other demanding industries. We provide customized solutions, technical guidance, installation support, commissioning assistance, spare parts and dependable after-sales service.
Looking for the right Vibroshifter for your process?
Our technical team can help select the ideal machine based on material characteristics, required mesh size, production capacity, particle size, number of decks and application requirements.
A Vibroshifter is a circular vibrating screening machine used to separate, classify, grade, de-dust and filter powders, granules and liquids. It helps achieve uniform particle size and improved product quality.
A vertical vibratory motor generates three-dimensional vibration, spreading material evenly across the screen mesh. Fine particles pass through the mesh while oversized particles move toward the discharge outlet.
Vibroshifters are widely used in Food Processing, Pharmaceutical, Chemical, Nutraceutical, Cosmetic, Dairy, Plastic, Ceramic, Mineral Processing and Agriculture industries.
Typical materials include Flour, Sugar, Salt, Spices, Milk Powder, Protein Powder, Starch, Coffee Powder, Cocoa Powder, API Powders, Chemical Powders, Pigments, Detergent Powder, Plastic Granules and Herbal Powders.
Millstorm Vibroshifters support stainless steel wire mesh ranging from 4 Mesh to 500 Mesh, depending on the application and required separation.
Single Deck, Double Deck, Triple Deck and Multi-Deck Vibroshifters are available for different screening and classification requirements.
Machines are available in SS304 Stainless Steel, SS316 Stainless Steel and Mild Steel. Material selection depends on the process and industry requirements.
Depending on the model and product characteristics, capacities range from approximately 20 kg/hr to more than 8,000 kg/hr.
Yes. Customization is available for machine size, number of decks, mesh size, inlet and outlet design, surface finish, motor specification, discharge arrangements and GMP or hygienic requirements.
Yes. Hygienic construction and food-grade stainless steel options make the machines suitable for food, pharmaceutical and nutraceutical applications.
Mesh life depends on the material being processed, operating hours and maintenance practices. Regular inspection helps maintain optimum screening performance.
No. Millstorm Vibroshifters are designed for easy cleaning, quick mesh replacement and low maintenance, helping minimize production downtime.
Yes. Double, Triple and Multi-Deck Vibroshifters can classify material into multiple size fractions during a single operation.
Yes. Depending on the application, the machine can be used for liquid filtration and slurry separation with suitable mesh selection and configuration.
Capacity depends on material type, bulk density, moisture content, mesh size, feed rate and particle size distribution.
Available options include Ultrasonic Mesh Cleaning System, Anti-Blinding Ball Deck, Magnetic Trap, Butterfly Valve, Dust Cover, Castor Wheels, Flameproof Motor, VFD, Inspection Window and Customized Hopper.
Our engineers recommend the suitable model based on material characteristics, required capacity, desired particle size, number of product grades, available installation space and industry requirements.
Yes. We provide technical consultation, installation guidance, commissioning support, spare parts and after-sales service for reliable long-term operation.
Millstorm Vibroshifters offer robust construction, high screening accuracy, hygienic design, low maintenance, energy-efficient operation, custom-built solutions, reliable technical support and competitive pricing.
Contact our sales team with the material to be screened, required capacity (kg/hr), particle size or mesh requirement, number of decks, industry/application and preferred machine material (SS304, SS316 or MS). Our experts will recommend the most suitable Vibroshifter and provide a detailed quotation.
