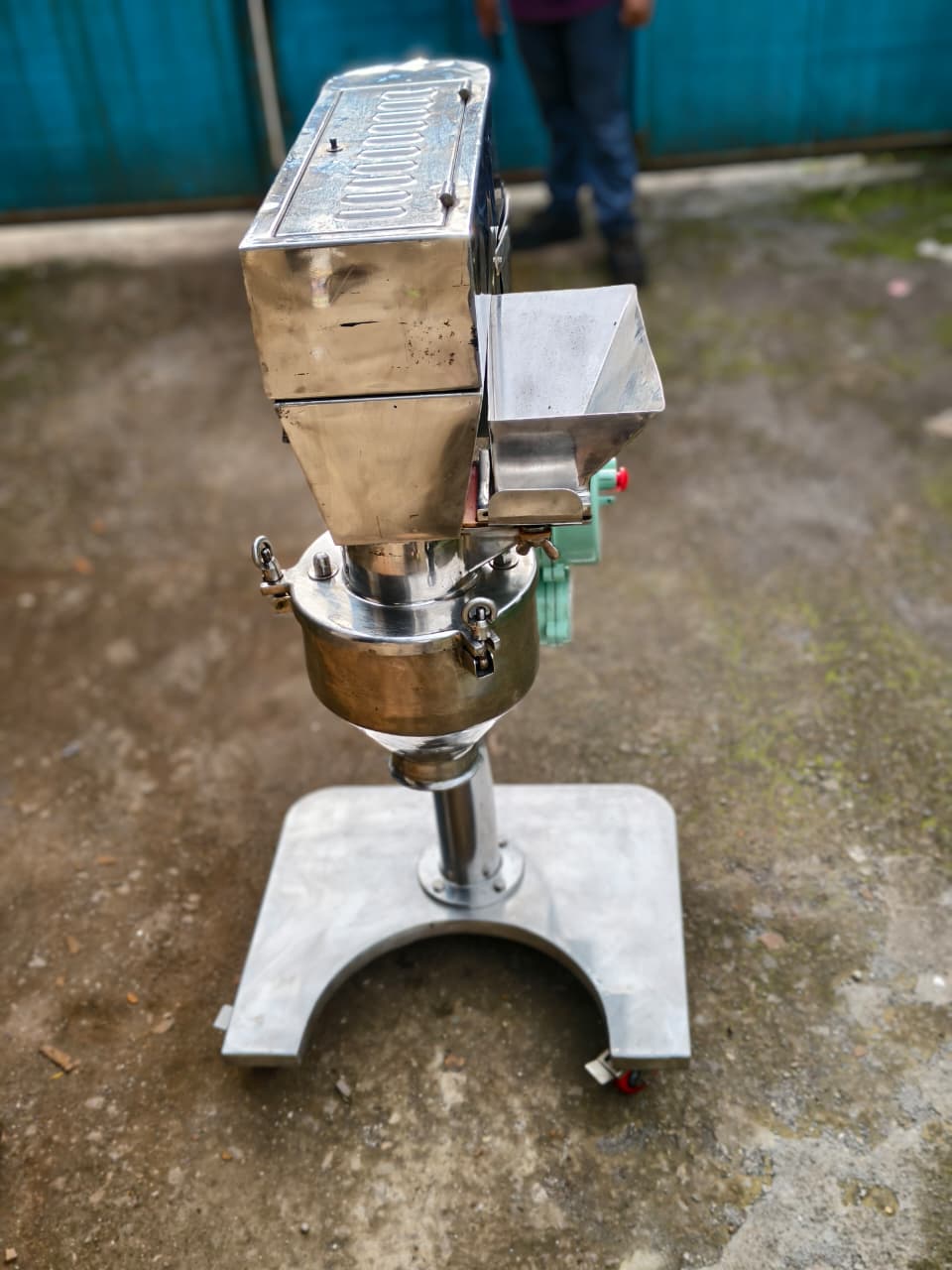

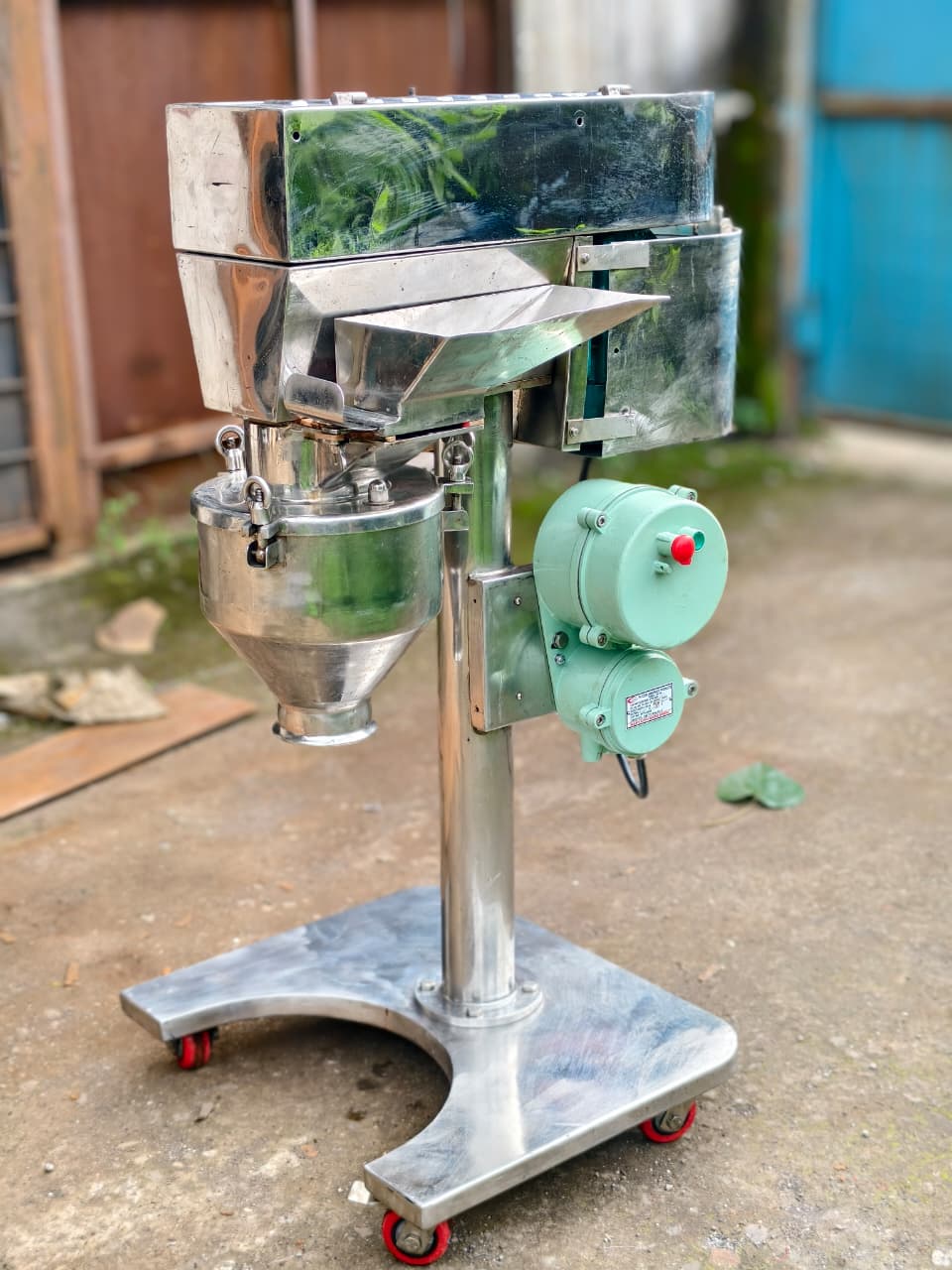

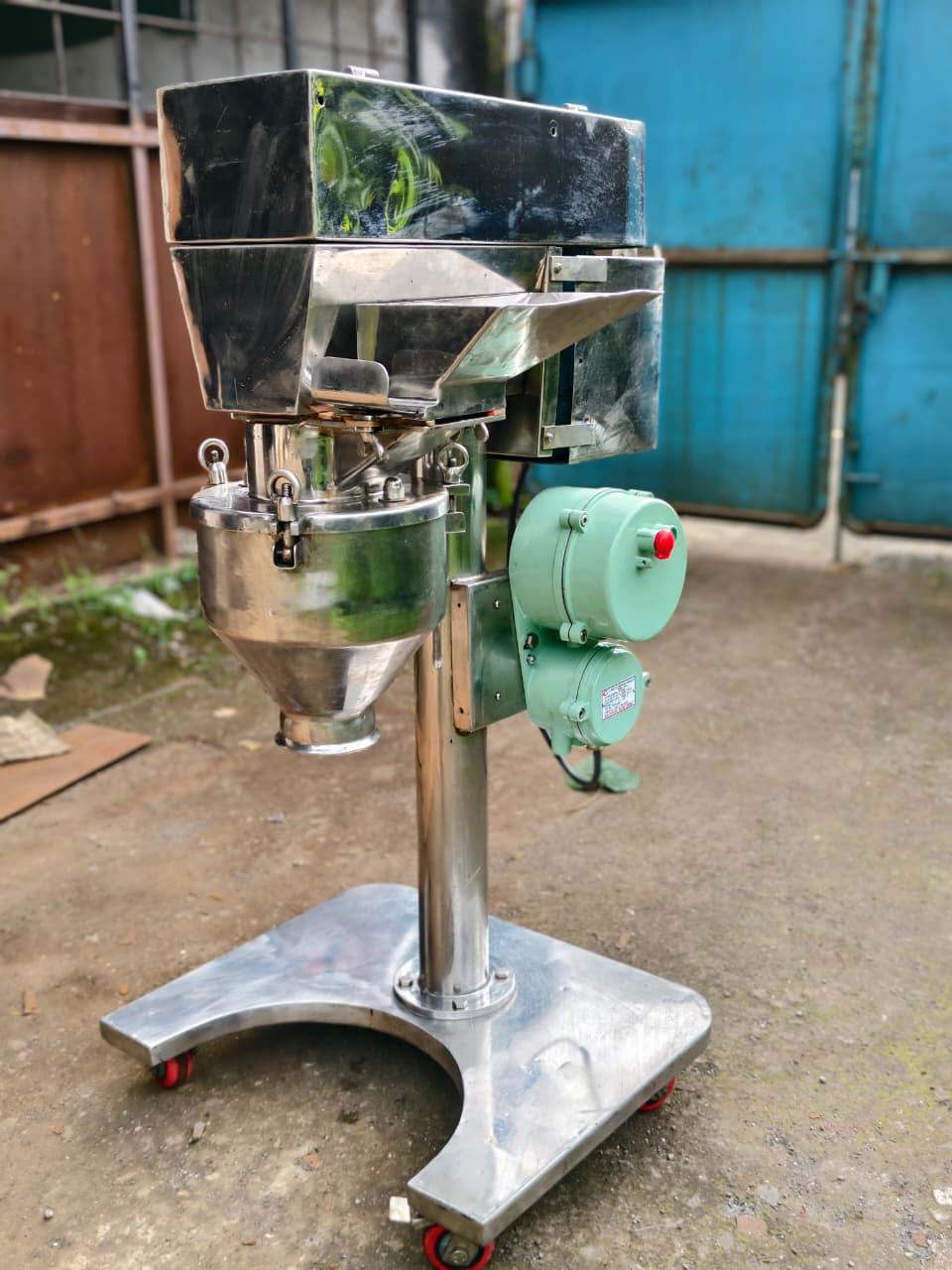

Multimill - Small Production/R&D Model

Working Principle

The Millstorm Multimill works on high-speed cutting and impact. Material enters the milling chamber, where rotating knife and impact blades reduce its size against a perforated screen. Particles reaching the required size pass through the screen, while larger particles continue to be milled. Blade direction and screen selection can be adjusted according to the product and application.

Technical Specifications

Model	Motor Power	Capacity	Rotor Speed	Screen Type
MEM-1	1 HP	25–100 kg/hr	Up to 2800 RPM	Interchangeable
MEM-3	3 HP	100–250 kg/hr	Up to 2800 RPM	Interchangeable
MEM-5	5 HP	250–500 kg/hr	Up to 2800 RPM	Interchangeable
MEM-7.5	7.5 HP	500–750 kg/hr	Up to 2800 RPM	Interchangeable

Note: Capacity depends on product characteristics, moisture content, screen size and feed rate.

Technical Details

Parameter	Specification
Construction	SS304 / SS316
Contact Parts	SS304 / SS316
Surface Finish	Matt / Mirror Polish
Rotor Speed	Up to 2800 RPM
Blade Type	Knife & Impact
Screen Type	Perforated Stainless Steel
Screen Hole Size	0.5 mm – 12 mm
Voltage	415 V AC
Phase	Three Phase
Frequency	50 Hz
Drive	Direct / Belt Drive
Control Panel	DOL / VFD

Standard Features

SS304 / SS316 contact parts, heavy-duty rotor assembly, knife & impact blades, scraper blades, perforated stainless steel screens, reversible blade rotation, DOL / VFD control, castor wheels, easy-cleaning design, GMP construction and low-noise operation.

Optional Accessories

VFD, Flameproof Motor, Dust Collection System, Vacuum Loading System, Mobile Trolley, Magnetic Trap, Additional Screen Sets, Additional Blade Sets, SS316 Construction, PLC-Based Control Panel and Explosion-Proof Electricals.

Available Models

1 HP Laboratory, 3 HP Production, 5 HP Production, 7.5 HP Heavy Duty, 10 HP Industrial and 15 HP High Capacity Models.

Custom-built models are available on request.

Industries Served

Pharmaceutical, Food Processing, Nutraceutical, Chemical, Cosmetic, Herbal Products, Agrochemical, Fine Chemicals, Spice Processing and Dairy.

Typical Materials Processed

Food: Flour, Sugar, Salt, Spices, Milk Powder, Cocoa, Coffee, Protein Powder & Starch.

Pharmaceutical: API Powders, Tablet Granules, Herbal Extracts, Dry Syrups & Excipients.

Chemical: Pigments, Detergent Powder, Resin, Polymer Powder & Fertilizers.

Benefits

Uniform particle size, high production efficiency, fast granulation, minimal product loss, easy cleaning, low maintenance, long machine life, hygienic construction, energy-efficient operation and reliable continuous performance.

Model Comparison

Model	Motor	Capacity	Ideal For
MSM-1	1 HP	25–100 kg/hr	Laboratory & R&D
MSM-3	3 HP	100–250 kg/hr	Pilot Production
MSM-5	5 HP	250–500 kg/hr	Small Manufacturing
MSM-7.5	7.5 HP	500–750 kg/hr	Medium Production

Why Choose Millstorm Multimill?

Millstorm Multimills are manufactured using precision engineering, premium-grade materials and strict quality control. They are designed for efficient size reduction, reliable operation, easy maintenance and long service life, with customization available according to specific process requirements.

Contact Us

Looking for the right Multimill?

Our technical experts can help select the ideal machine based on material characteristics, required capacity, desired particle size, wet or dry application and industry requirements.

Frequently Asked Questions (FAQs)

1. What is a Multimill?

A Multimill is a high-speed size reduction machine used for granulating, pulverizing, shredding, milling and processing dry and wet materials across pharmaceutical, food, chemical, cosmetic and nutraceutical industries.

2. How does a Multimill work?

Rotating blades cut and impact material against a perforated screen. Material reaching the required size passes through the screen to produce uniform particle size.

3. What applications is a Multimill used for?

Size Reduction, Granulation, Pulverization, De-agglomeration, Wet Granulation, Dry Granulation, Particle Size Control and Mixing of Certain Materials.

4. Which industries use Multimills?

Pharmaceutical, Food Processing, Chemical, Nutraceutical, Cosmetic, Herbal Products, Agrochemical and Fine Chemical industries.

5. Which materials can be processed?

Pharmaceutical Granules, Herbs, Spices, Sugar, Salt, Dry Fruits, Protein Powder, Milk Powder, Starch, Food Ingredients, Chemical Powders, Detergent Raw Materials, Pigments, Resin and Fertilizers.

6. What is the production capacity of a Multimill?

Capacity depends on the model, screen size, product characteristics and required particle size. Standard machines typically process from 25 kg/hr to over 1,500 kg/hr.

7. What screen sizes are available?

Interchangeable perforated screens are available for different particle sizes, with screen hole diameters customizable according to the application.

8. What types of blades are available?

Knife Blades are used for cutting and granulation, while Beater Blades are used for impact milling. Blade selection depends on the product.

9. Can one machine perform both wet and dry granulation?

Yes. With the appropriate blade and screen configuration, the same Multimill can be used for both wet and dry granulation.

10. What materials are used for construction?

Machines are available in SS304 Stainless Steel, SS316 Stainless Steel and Mild Steel for non-contact parts where applicable.

11. Is the machine suitable for pharmaceutical manufacturing?

Yes. GMP-compliant hygienic construction makes the Multimill suitable for pharmaceutical and nutraceutical production.

12. Is the Multimill easy to clean?

Yes. The machine is designed for quick dismantling, easy cleaning and rapid product changeover, helping reduce downtime.

13. How do I select the right screen?

Screen selection depends on required particle size, product characteristics, moisture content and production capacity. Our technical team can recommend the suitable screen.

14. Can the machine handle heat-sensitive materials?

Yes. High-speed milling reduces processing time, and suitable operating conditions can help process many heat-sensitive products efficiently.

15. What safety features are available?

Safety Interlock, Motor Overload Protection, Emergency Stop, Fully Enclosed Construction and Guarded Drive System.

16. What optional accessories are available?

VFD, Dust Collection Connection, Feed Hopper Options, Mobile Trolley, Flameproof Motor, SS316 Contact Parts, Different Screen Sets and Spare Blade Sets.

17. How often should blades and screens be replaced?

Replacement depends on material abrasiveness, operating hours and maintenance practices. Regular inspection helps maintain optimum milling performance.

18. What are the advantages of a Millstorm Multimill?

High milling efficiency, uniform particle size, low heat generation, easy operation, low maintenance, compact design, hygienic construction, quick screen and blade replacement and reliable continuous operation.

19. Can the Multimill be customized?

Yes. Customization is available based on required capacity, product characteristics, screen size, blade type, construction material, electrical specifications and industry standards.

20. How can I request a quotation?

Provide the material to be processed, required output capacity, feed particle size, final particle size, wet or dry application, preferred construction material (SS304/SS316) and industry/application. Our engineering team will recommend the suitable Multimill and provide a detailed technical quotation.
